4600 Repair Guide
8

Chapter 8

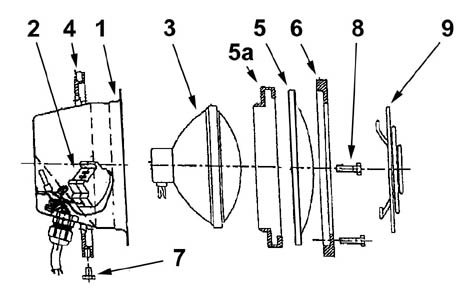

Model 4600 Light parts breakdown

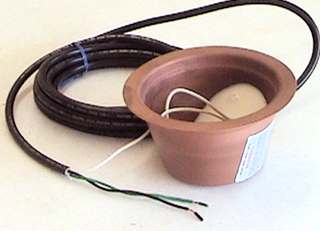

1 - Potted Can

The potted can assembly comes complete with the "Copper Can", "Power Cord" and "Porcelain Bulb Socket" It is available with 10ft, 20ft, 30ft, 40ft, and 50ft, cord lengths.



84210
10ft cord - Potted Can
84209
20ft cord - Potted Can
84193
30ft cord - Potted Can
84195
40ft cord - Potted Can
84197
50ft cord - Potted Can

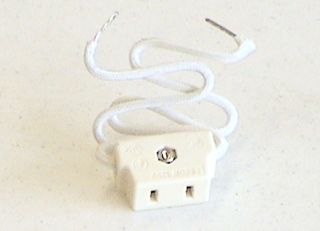

2 - Porcelain Socket

The porcelain bulb socket is the only serviceable part in the potted can. Comes as pictured with socket and wire leads.

85248

Porcelain Light Socket



3 - 200W Bulb

The 200W 120V PAR46 bulb is available in either NSP (narrow spot) or MFL (medium Flood)

84002
NSP - Narrow Spot 200W 120V PAR 46
84009
MFL - Medium Flood 200W 120V PAR 46

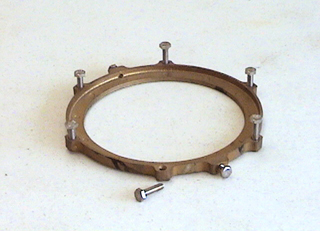

4 - Bottom Flange

The bottom flange is cast brass and is threaded in order to receive the bolts.



85207

Threaded Bottom Flange




5 - Glass Lens

The lenses are constructed out of glass and are available in six colors and clear.

84700
7" Clear Lens
84701
7" Amber Lens
84702
7" Turquoise Lens
84703
7" Light Red Lens
84704
7" Dark Red Lens
84705
7" Blue Lens
84706
7" Green Lens



Lens Color
Light Transmittance


What do these numbers mean?

On the clear lens it means that 92% of the light is able to pass through the lens.

On the Green lens it means that 3% of the light is able to pass through the lens.

That is why the dark colors are only recommended in dimly lit areas.

Clear
92%
Use for maximum brilliance
Amber
55%
Turquoise
23%
Light Red
20%
Dark Red
7%
Use only where other lighting will not interfere with fountain lighting.
Blue
3%
Green
3%

5A - Lens Gasket

The lens gasket is constructed out of red silicone.

84218

Red Silicone Gasket

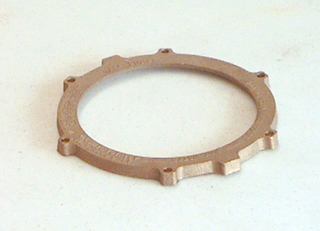

6 - Top Flange

The top flange is cast brass and is NOT threaded. The holes in the flange are large enough for the bolts to freely slide through them.

85207

Top Flange

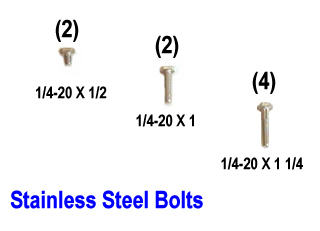

7 & 8 - Stainless Steel Bolts

There are three different lengths of stainless steel bolts. Two for the mounting holes, four for the holes with the rock guard, and two for the remaining holes.

84220
1/4-20 x 1/2 (2) required
87860
1/4-20 x 1 (2) required
86101
1/4-20 x 1 1/4 (4) required



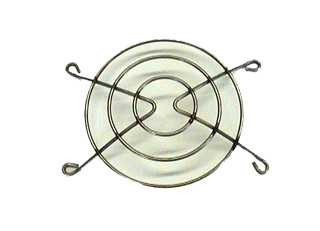

9 - Stainless Steel Rock Guard

84219

Stainless Steel Rock Guard

Bronze Base and Yoke

84011
Cast Bronze Base and Yoke complete
85220
Base only, Cast Bronze
84131
Bracket only - Brass
84220
1/4-20 x 1/2" SS Bolt
87274
Lock washer
Split type 1/4"
